General Specifications

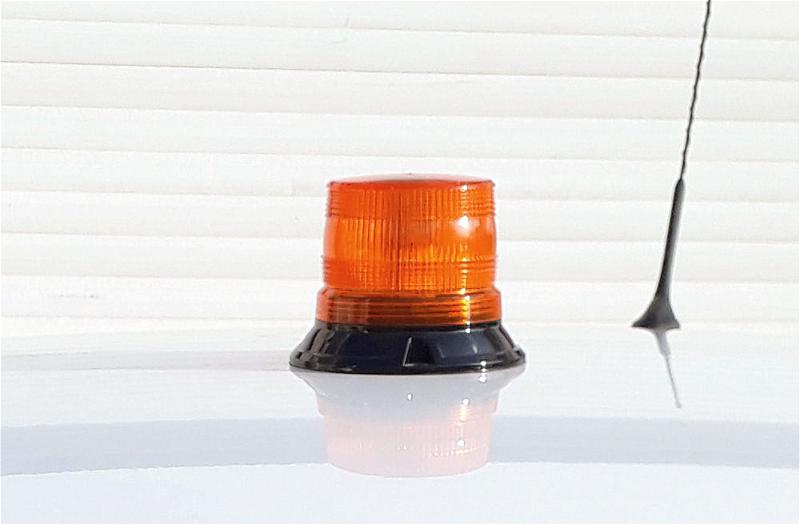

MCL LED Beacons are mini size warning lights with UV and impact resistant polycarbonate body, resistant to harsh environmental conditions, fixed or selectable flash mode options, number of LEDs and color options. They emits strong warning light thanks to the fresnel lens structure of their outer lens.

Flash Options

MCL LED beacon has fixed uniform flash or selectable flash mode options.

Synchronous Operation

If several BCY LED Beacon mounted side by side and optional synchronous connection is provided, it has the ability to flash synchronously as if it were a single product.

General Features

  • Synched operating option
  • Multiple flash mode option
  • Number of LEDs and color options
  • Water and harsh environmental conditions resistant structure
  • External optic lens with fresnel lens
  • High-impact power LEDs
Technical Details
  • 12-24VDC operating voltage
  • UV and impact resistant polycarbonate plastic material,
  • 6, 12, 18 LED options
  • -40°C/+65°C operating temperature


  • ECER65, ECER10, IP65 with appropriate configurations

Color Options

  • Red, blue, amber, green and white LED color options
  • Red, blue, amber, green and clear plastic chamber color options

Mounting Features

  • Permanent mounting
  • MagneMCL is the magnetic model for portable use.

Complementary Parts

  • REM-02 Mode Switch and On/Off


  • Diameter : 11 cm
  • Height : 10,5 cm
MCL İkaz Lambası Ölçüleri
