INFINITY-LS Lightbar with Speaker

General Specifications

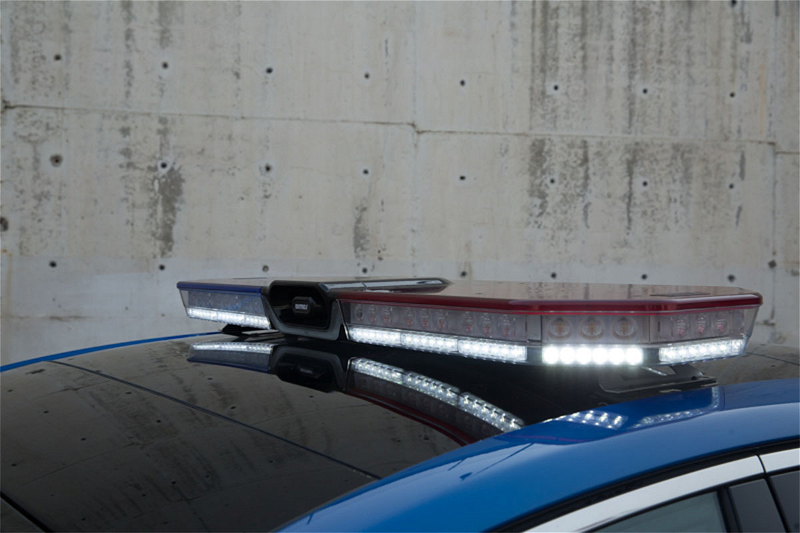

Designed with a new perspective,the technological INFINITY-LS lightbar is a vehicle-mounted lightbar with a two-layer light source and speaker, which offers all the functions required by the market, and can be adjusted in length.
  • 360 degree of visual warning
  • Traffic cleaning
  • Traffic advisor
  • Front, rear and cross projectors
  • Alley lights
  • Thin neodymium speaker with low empedans
  • Lens design with patent

Infinity LS Tepe Lambası

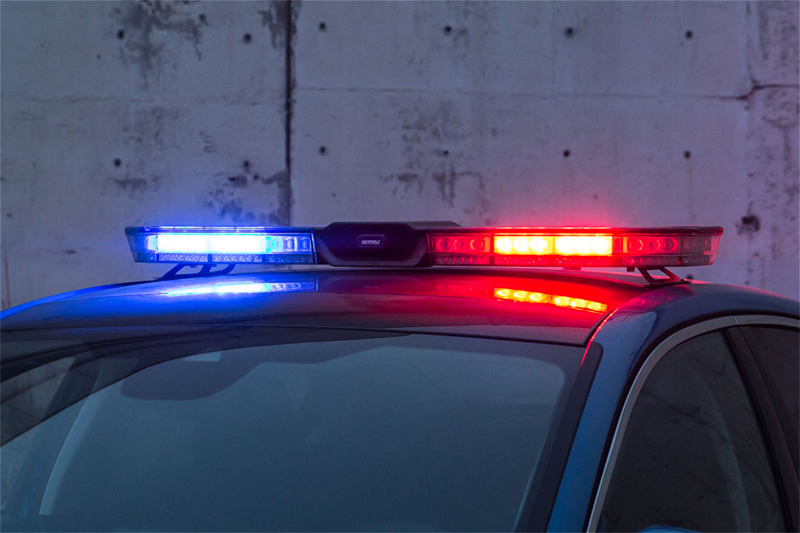

Visual Warning and Area Lighting

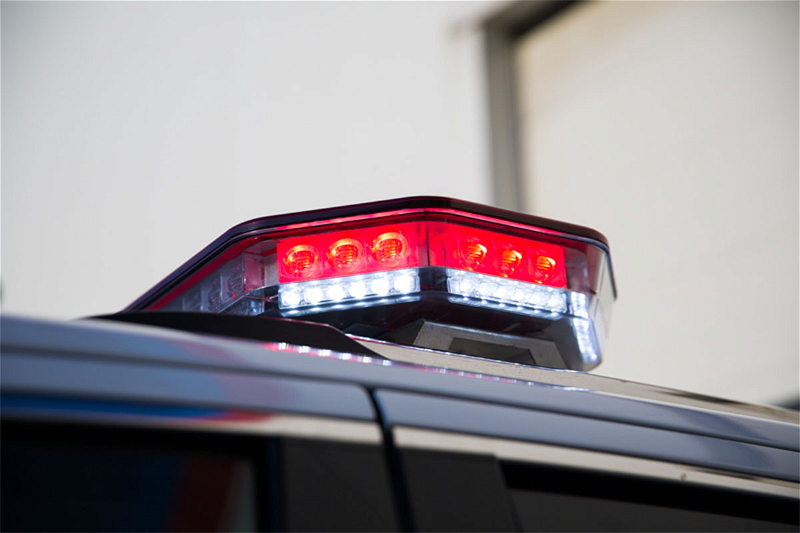

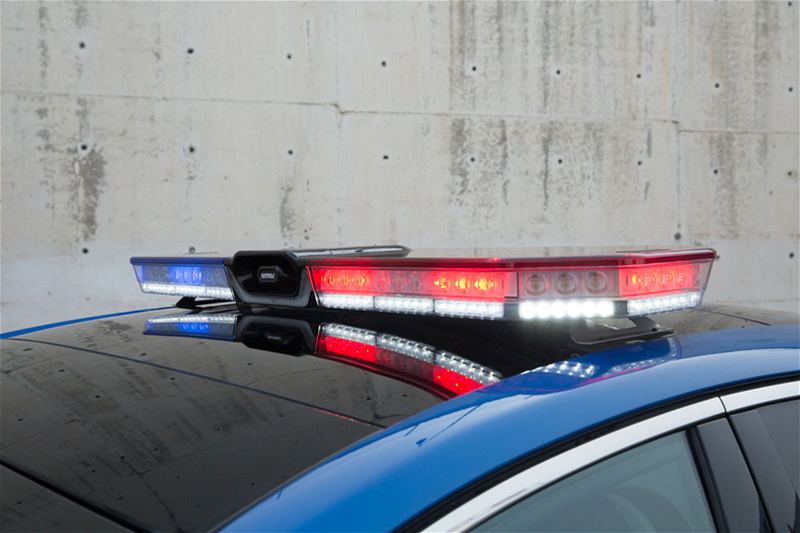

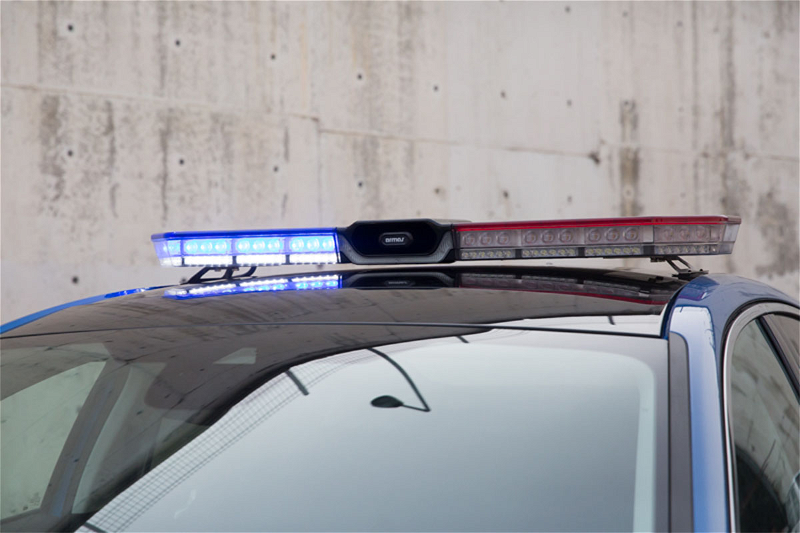

INFINITY-LS, which has two rows of light sources, has a white illumination LED in the lower row, and a red, blue, amber, green and white warning in the upper row. Although the lower part projectors illuminate, they provide the traffic cleaning function by flashing when necessary.

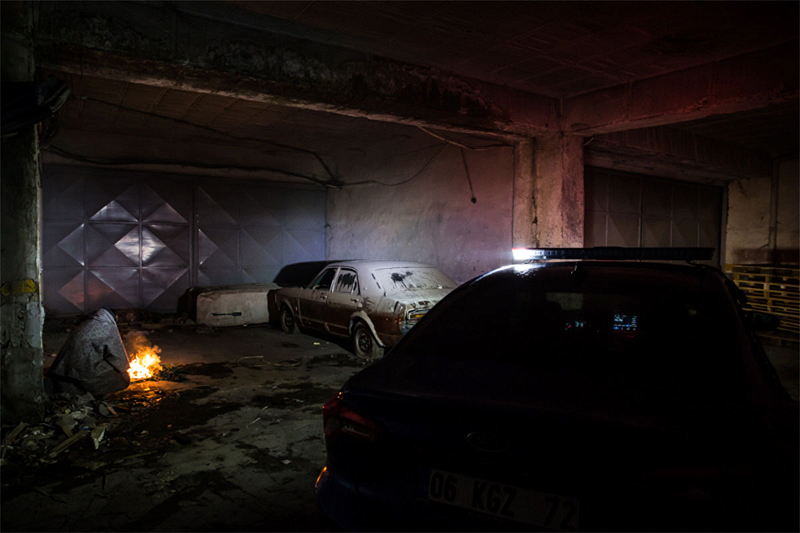

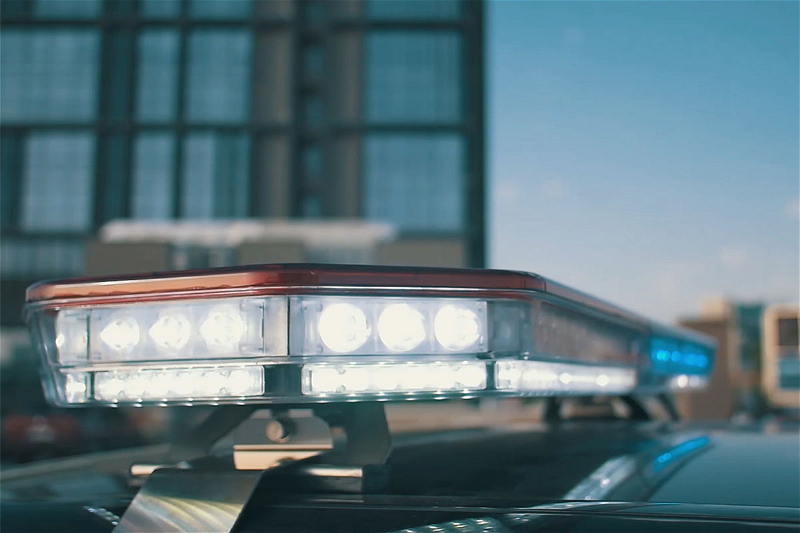

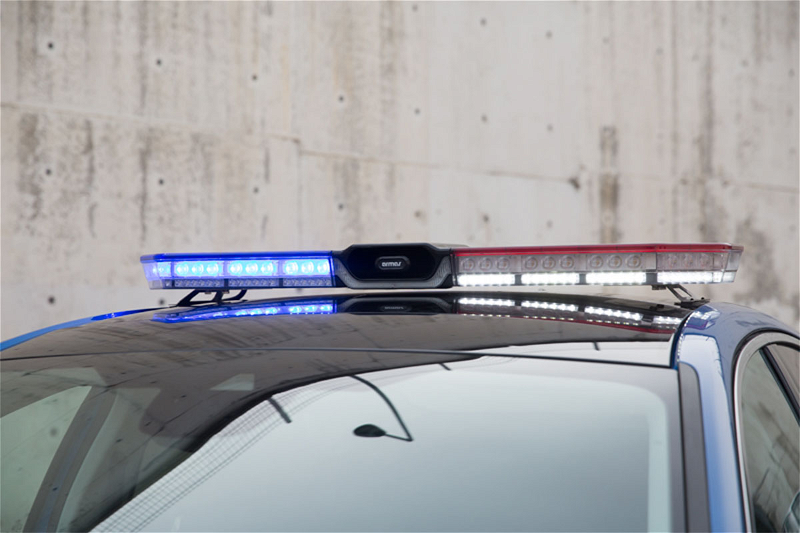

On the ground floor, it can delivers highly effective area lighting with its LEDs, which can provide both sectional  and 360-degree illumination, placed in the front, rear, side and cross corners. Side warnings can also be used for alley lights.

Lens with patent

Featuring patented lens, INFINITY-LS Lightbar enables Multicolor LED lights spread 360 degrees in a wide angle, increasing the perception of warning light, enabling emergency teams to go to the scene safely and quickly.

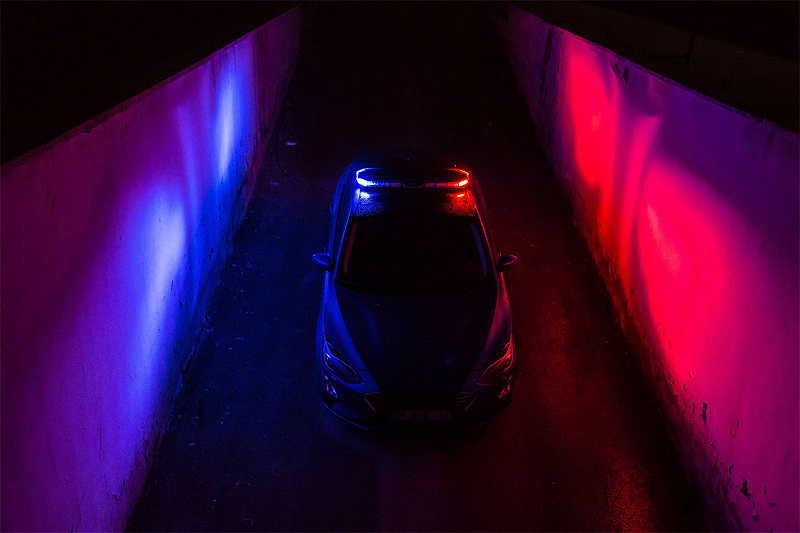

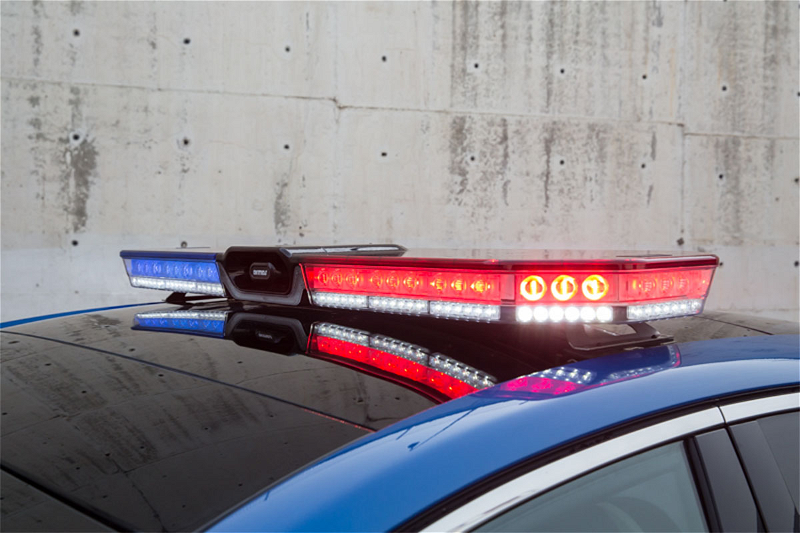

360 degree Warning Light Emission

With its unique design that eliminates the dark area behind the speaker in the light band in the speaker Chamber, it can emit 360 degrees uninterrupted warning light, increasing its perception in traffic while on the move.

Thin Neodymium Speaker

Neodymium speaker which features the low impedance with high performance which is placed thinly in the middle can broadcast a strong siren sound and make an announcement when used with the compatible ARMAS siren device. When desired, the sound coming to the vehicle radio can be emitted from the speaker to the outside.

Automatic Light Intensity Control

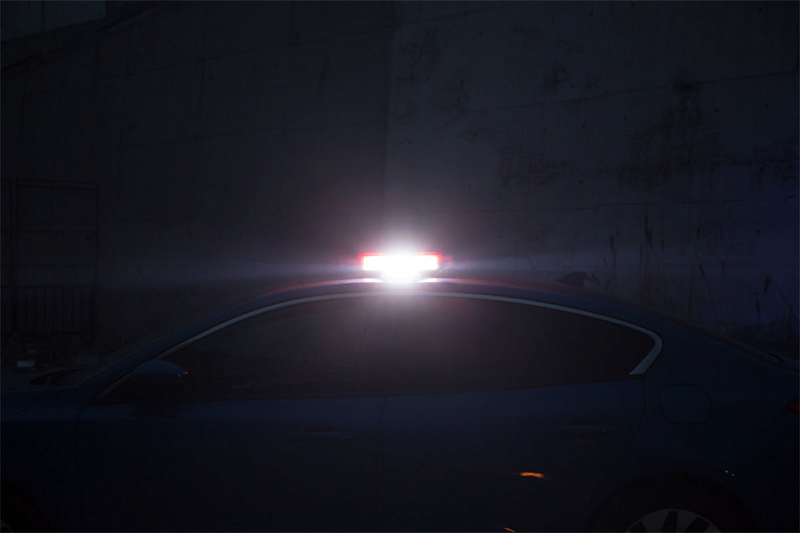

The INFINITY-LS Lightbar features an optional night sensor. With the help of this sensor, it increases the light intensity during the day, thus making it easier to be understood from far distances. At night, by reducing the light intensity, it both consumes less energy and prevents the drivers from being distracted in the traffic. It is also possible to adjust the light intensity level manually.

Functionality and Customization

INFINITY-LS can be utilized functionally according to many titles, some of its functions can be adjusted via the control whilst some of them via the AWS-Set software. It also fits for a variety of applications such as flash mode that can be adjusted infinitely for these titles, determination of the working mode when first turned on, traffic advisor, traffic cleaning, sectional illumination , alleys lighting functions, warning LEDs conversion to area lighting function when necessary, prohibition of light color to be emitted, wireless communication power setting , day and night light intensity adjustment level, lighting support for alleys lighting, master-slave control setting options, full visibility of the operation simulation on the screen, selection of multiple synchronous control by matching the remote control, and option selection for communication with the vehicle via canBUS are at the forefront.

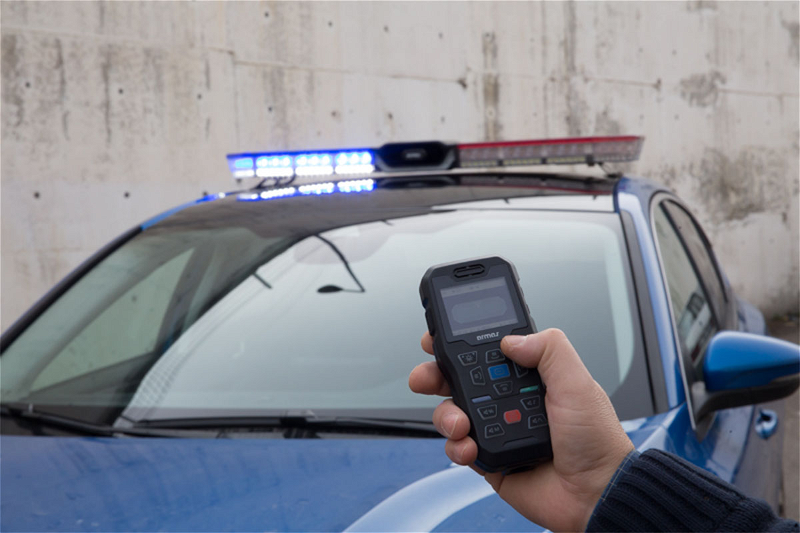

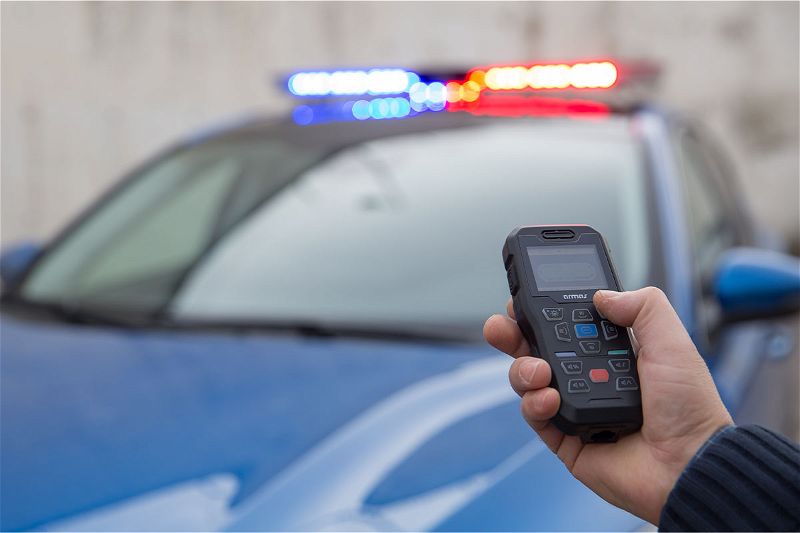

Wired-wireless Control and System Control

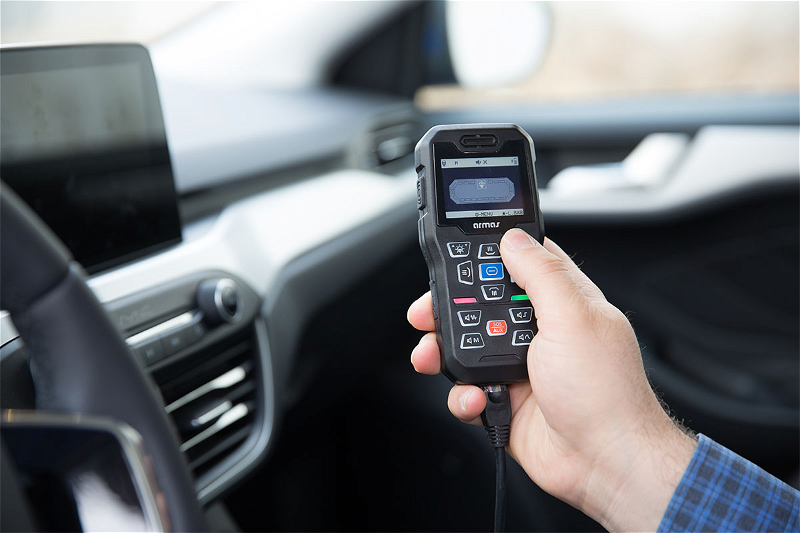

From the wired and wireless remote control, warning  functions can be controlled .User information and operation simulation are shown on the color TFT screen that can be read in the sun.

With the presentation of the simulation in the remote, many information such as flash pattern, flash color, day and night modes, error notifications are reported to the user on the screen and any functions can be adjusted via the remote.

The remote is user-friendly with its many features such as using multiple synchronous controls by pairing several remote controls, automatic switching from wired to wireless without loss of function when going out of the vehicle, and adjusting many functions from the menu.

İnfinity L Tepe Lambası

Wired Use

İnfinity L Tepe Lambası

Wireless Use

İnfinity L Tepe Lambası

Multiple Syncronized Use

General Specifications

  • 360 degree uninterrupted visual warning with its specially designed speaker
  • Warning,Traffic Cleaning,Traffic Advisor,Cruise Light Modes
  • Left-right alley lights, front, rear, alley light and cross projectors with the light source in the lower row
  • Sectional or whole area illumination
  • Superior light intensity and radiation with its patented lens
  • Intelligent warning LED modüle technology that can report errors
  • Manual and automatically adjustable light and sound settings
  • Function setting ability with specially developed AWS-SET software
  • Usage functions that can be adjusted on the remote
  • Wired,wireless  and multi-controller use
  • High performance speaker with low impedance
  • Number of LEDs and size options according to usage
Technical Details
  • Aluminum body
  • -40°C/+70°C
  • UV and impact resistant polycarbonate plastic chamber
  • Standard 100W/11ohm speaker power (contact for other options)
  • Thin type neodymium speaker magnet
  • 12-24VDC operating voltage


  • ECER65, ECER10, SAE, EMC, IP65 with appropriate configurations

Color Options

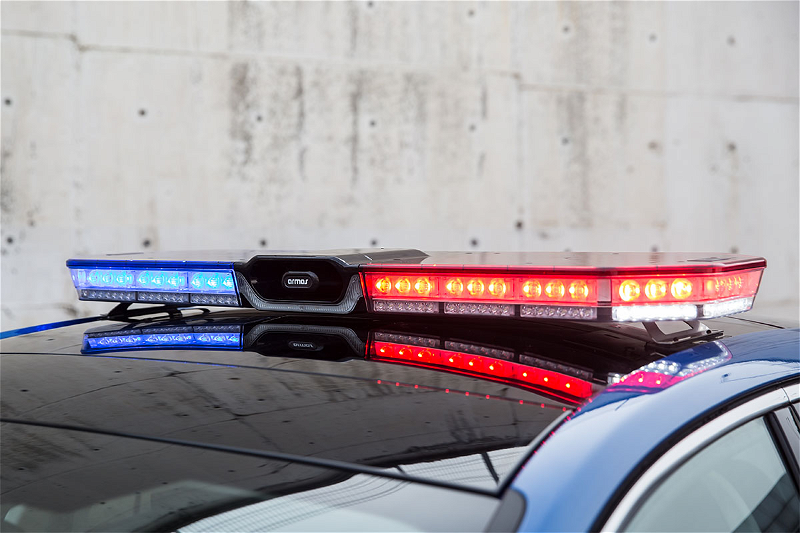

  • Amber colored traffic advisor
  • Red, blue, amber, green and clear plastic containers and their color combinations
  • Red, blue, amber, green, white light band
  • White colored area illumination lights
  • Red, blue, amber, green and white warning lights

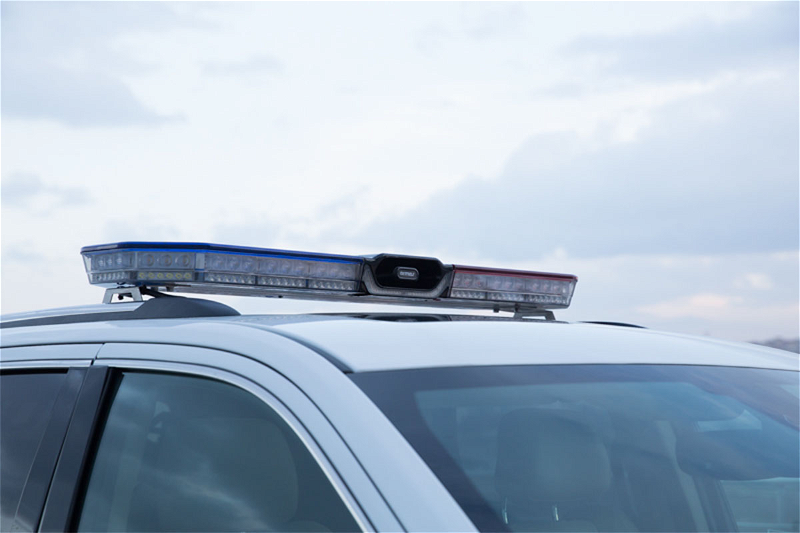

Mounting Specifications

  • Detachable structure with ceiling connector
  • Stainless or painted mounting parts
  • Screw mounting on the vehicle
  • Mounting without drilling the vehicle with clamp mounts

Size Options

  • Length: 116cm / 139cm / 161cm (Contact for different size options)
  • Width: 36 cm
  • Warning Section Height: 6,9 cm
  • Speaker Height: 8,4 cm
Infinity LS Tepe Lambası Ölçüleri
